Entel built the industrial-grade DTEx DMR Digital Series to exacting standards. This IECEx-certified portable delivers remarkably loud and clear audio, and ultra-tactile buttons and high torque controls allow the DTEx to be operated even with gloved hands.
The DTEx Series sets the benchmark for next-generation onboard radios with a market-leading IP68 submersible rating (2 meters 4 hours). You can depend on the DTEx to withstand daily use in extreme and hostile environments at sea.
To ensure your workforce receives consistently reliable and intelligible communications, we have developed an extensive range of certified and approved audio accessories for the DTEx Series, including remote speaker microphones, bone conductive skull mics and ear defender headsets. Please see our accessories section for a complete listing.
» Analogue only
» 16 Channels, 1 Zone
» IP68 Submersible (2m, 4 hours)
» Compliant to MILSTD construction 810C/D/E/F
» Salt Water anti-corrosion chassis coating
» Exceptionally loud & best clarity audio - in class
» Programmable buttons
» Gold plated accessory connector
» Locking accessory connector
» Accessory audio tailoring optimises audio for each accessory
» Drag and drop programmer, can be done onboard
Channels - This non display VHF marine portable can be programmed with up to 16 channels.
Environmental protection to IP68 (2 Meters for 4 hours) - The DT542 offers the highest submersibility rating of any manufacturer. This protects against corrosion, withstanding total immersion in water to a depth of 2 meters for 4 hours to protect against the likely hazards encountered in extremely wet environments.
Robust accessory socket – DT542 accessory socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse. The rugged, multi-pin interface and Micro-USB socket are both submersible and gold-plated to minimize any risk of damage and protect against corrosion. To ensure the integrity of IS protection levels any accessory connected to the handset automatically undergoes a validation process to safeguard against non-compliant accessories being used. All DT542 accessories incorporate a robust locking connector to further safeguard the safety of the user.
Li-ion battery technology & improved talk time – DT542 radios are supplied with the latest intelligent Lithium-ion battery technology as standard. One key advantage of Lithium-ion battery technology is the way it eliminates ‘memory effect’, meaning that there is no need to fully discharge your battery before recharging. As a result of this, you are assured of a full charge each and every time you take your Entel battery from its charger.
Superior Audio - DT542 portables deliver loud & crisp audio no matter what environment you are in. All of the DT542's range of accessories incorporate a robust locking plug and high-grade cable and benefit from Entel’s proprietary “Smart Speech Tailoring” technology. This automatically detects the type of accessory connected and optimizes the audio accordingly to deliver the very best performance.
Simple onboard reprogramming app - With our free, unique and simple to use PC app, you can easily re-program a DT542 radio whilst still onboard. The user friendly app makes it easy to drag and drop a new programming file from an email to your DT542 radio(s).
This is a simple and seamless process that can be carried out by non-technical personnel.
Keylock - To avoid accidental operation, your radio's keys & controls can be locked.
Programmable channel monitor button - If you have channel protection enabled on your DT542 portable, all signals other than your own networks will be filtered out. This can be temporarily disabled allowing you to monitor all signals on your channel.
Audio Accessories & BA Support - Entel also offer an extensive range of accessories including Draegor BA, most popular for Fire Fighters is the CXR bone conductive throat and skull microphones which eliminate ambient noise, further enhanced by DT542's speech tailoring technology delivering intelligible communications first time, every time.
IECEx Approval - The DT542 series of intrinsically safe certified portables deliver a full 4 watts of transmitter power and are suitable for those users who do not need to comply with the European ATEX standard (For sales outside Europe only).
| Specification | Details |
|---|---|
| Frequency Range | VHF 156-163MHz |
| Channels | 16 |
| Channel Spacing Analogue | 12.5KHz & 25KHz |
| Battery | CNB550EV2 1800mAh Lithium-ion |
| Weight | 435g |
| Overall Dimensions (HxWxD) | 138mm x 60mm x 38mm |
| Frequency Stability | ±0.5ppm |
| Operating Voltage | 7.4V |
| Programmable Buttons | 3 |
| Battery Endurance (5/5/90) Analogue mode | 10 hours |
| Battery care information | Visit entel.co.uk/battery_care |
| Transmitter | |
| Output Power | 3.9 W (High) / 1 W (Low) |
| Modulation Limiting | ±2.5KHz / ±5.0KHz |
| FM Hum and Noise | >-40dB / >-45dB |
| Unwanted Emissions | <2nW up to 1GHz, <20nW from 1GHz to 2GHz |
| Adjacent Channel Power | >60dBc / >70dBc |
| Audio Response (FM) | 300Hz to 3KHz -6dB/Octave |
| Audio Distortion | <5% |
| FM Modulation | 16K0F3E |
| Receiver | |
| Analogue Sensitivity | -120dBm (0.2uV) for 12dB Sinad |
| Intermodulation Response Rejection | >68dB |
| Adjacent Channel Selectivity | >60dB / >70dB |
| Spurious Rejection | >70dB |
| Audio Output Power | 1 Watt |
| Audio Distortion | 5% |
| Hum and Noise | >-40dB / >-45dB |
| Audio Response | 300Hz to 3KHz -6dB/Octave |
| Conducted Spurious Emissions | <2nW up to 1GHz, <20nW from 1GHz to 2GHz |
| Environmental | |
| Ex Protection | IECEx Ex ib IIB T4 Gb |
| Operating Temperature | -20°C to +40°C |
| Storage Temperature | -40°C to +85°C |
| Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test | Compliant MIL-STD810 C/D/E/F |
| Water Ingress | IP68 2 metres, 4 hours submersible |
» Li-ion battery pack
» Drop in charger
» Spring loaded belt clip
» High efficiency antenna
» Quick start user guide
Bone conductive skull microphone
Bone conductive throat microphone
1800mAh rechargeable Lithium-Ion battery pack

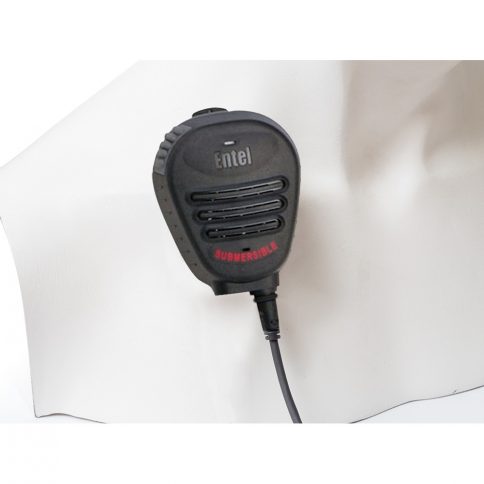

Rugged submersible remote speaker microphone
SAVOX C-C550 Remote Speaker Microphone, approved for use with DT800 and DT900 Series ATEX radios.

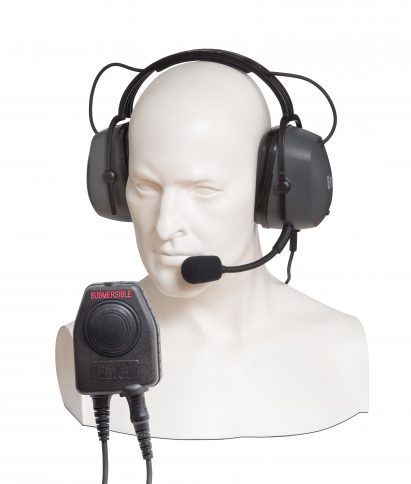

Double ear-cup ear defender headset with headband, c/w PTT-E/DT9

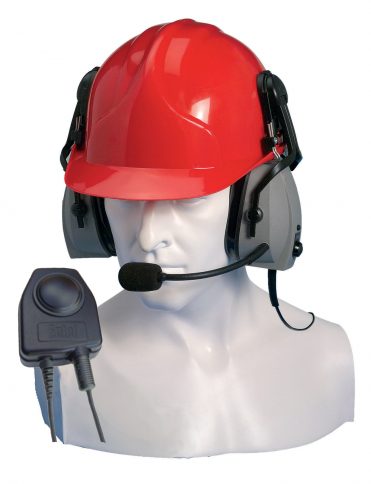

Double ear-cup ear defender headset with hardhat fixings, c/w PTT-E/DT9
Single ear-cup ear defender headset with hardhat fixings, c/w PTT-E/DT9
Leather carry case for DT non display model Supplied with both belt loop & carry strap
Six pod intelligent rapid charger, 110-240V. Specify 2-pin or 3-pin plug

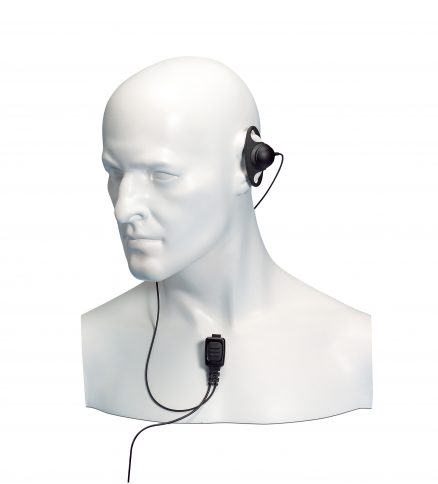

Earpiece microphone & PTT
Listen only earpiece - Not currently available

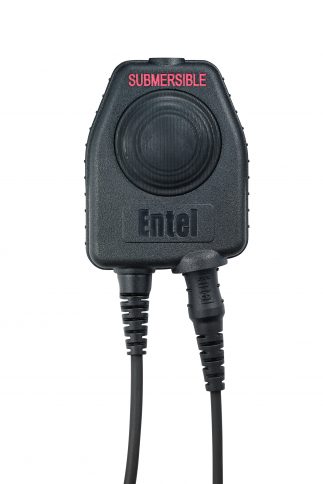

Spare heavy duty waterproof push-to-talk for CHP accessories.
Spare heavy duty waterproof push-to-talk for CXR accessories.
Single pod rapid charger, 110-240v, specify 2-pin or 3-pin plug
Single pod trickle charger, specify 2-pin or 3-pin plug

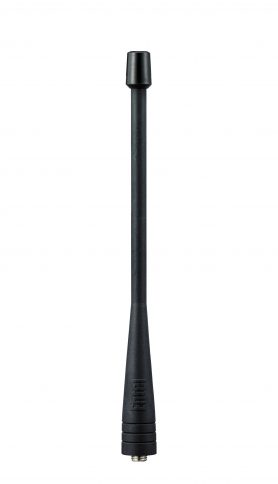

VHF 156MHz antenna
