Built to meet the needs of tough marine environments, the DX500 Series is certified to the UL913 intrinsically safe standard and offers outstanding performance. This commercial-grade portable delivers unmatched audio volume and clarity. The intuitive controls, designed for gloved hands, complement the high-contrast OLED display, which is easy to read in low-light conditions.
The compact and ultra-durable DX500 provides a far more natural sounding, 3 watts of digital audio, clearer and louder than radios twice their size. For further peace of mind, the DX500 Series has a market-leading IP68 submersible rating of 2 metres for 4 hours to cope with the harsh conditions of life at sea. We have produced a selection of certified and approved audio accessories for the DX500 Series, including remote speaker microphones, bone conductive skull mics and ear defender headsets. Please see our accessories section for a complete listing.
Intrinsically Safe Certified to UL913 by SGS:
ANSI/UL913 5th Ed
Class I, II, III, Division 1, Groups C-G, T3
Class I, Division 2, Groups A-D
» Analogue only
» 16 Channels, 1 Zone
» IP68 Submersible (2m, 4 hours)
» Compliant to MILSTD construction 810C/D/E/F
» Salt Water anti-corrosion chassis coating
» 3 watts loudest & best clarity audio - in class
» Programmable buttons
» Gold plated accessory connector
» Locking accessory connector
» Accessory audio tailoring optimises audio for each accessory
» Drag and drop programmer, can be done onboard
Channels - This non display VHF marine portable can be programmed with up to 16 channels.
Environmental protection - IP68 (2 Meters for 4 hours) Entel's radios are approved to IP68 (2 Meters for 4 hours) rated construction, which means that they are dust protected and fully Submersible (even with the accessory cover removed).
MILSTD 810C/D/E/F - Meeting MIL-STD 810C/D/E/F and providing commercial grade construction for tough, enduring performance. Entel's radios conform to stringent standards, enabling them to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture, ensuring many years of trouble free use.
Outstanding Audio - Entel’s radios offer best-in-class performance with natural-sounding digital audio.
Li-ion battery technology & improved talk time - Entel's radios are supplied with the latest, high-capacity, intelligent Lithium-ion battery technology as standard. One key advantage of Lithium-ion battery technology is the way it eliminates ‘memory effect’, meaning that there is no need to fully discharge your battery before recharging. As a result of this, you are assured of a full charge each and every time you take your Entel battery from its charger.
Programmable buttons - To ensure your Entel radio meets your exact need its buttons can be programmed with the exact features you need.
Gold plated accessory connector - The radios multi-pin interface and Micro-USB socket are both submersible and gold-plated to minimise any risk of damage and protect against corrosion.
Locking accessory connector - All Entel accessories incorporate a robust locking connector and the radios accessory socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse.
Accessory audio tailoring - Entel's radios identify the attached accessory and automatically adjust its settings ensuring the most natural and readable audio possible is delivered even with bone conductive accessories and breathing apparatus com kits.
End user programmer - Entel adds and improves features on its DX radios by way of free software updates. Using Entel’s innovative End User Programmer app Entel DX radios can be easily upgraded without the Dealer having to visit site or courier the radios back and forth saving significant time and expense.
Intrinsically Safe Certified to UL913 by SGS:
ANSI/UL913 5th Ed
Class I, II, III, Division 1, Groups C-G, T3
Class I, Division 2, Groups A-D
| Specification | Details |
|---|---|
| Frequency Range | VHF 156-163MHz |
| Channels | 16 |
| Channel Spacing (Analogue) | 12.5KHz & 25KHz |
| Battery | CNB450E-IS 2200mAh Lithium-ion |
| Weight | 259g - with CNB450E-IS |
| Operating Voltage | 7.6V |
| Overall Dimensions (HxWxD) | 97mm x 59.5mm x 37mm |
| Programmable Buttons | 3 |
| Battery Endurance (5/5/90, Analogue mode) | 14 hours |
| Battery Care Information | Visit entel.co.uk/battery_care |
| Transmitter | |
| Output Power (VHF) | 5W (high) - 1W (low) |
| Modulation Limiting | ±2.5KHz / ±5.0KHz |
| FM Hum and Noise | >-40dB / >-45dB |
| Unwanted Emissions | <2nW up to 1GHz, <20nW from 1GHz to 2GHz |
| Adjacent Channel Power | >60dBc / >70dBc |
| Audio Response (FM) | 300Hz to 3KHz -6dB/Octave |
| Audio Distortion | <5% |
| FM Modulation | 16K0F3E |
| Receiver | |
| Analogue Sensitivity | -120dBm (0.2uV) for 12dB Sinad |
| Intermodulation Response | >68dB |
| Adjacent Channel Selectivity | >60dB / >70dB |
| Spurious Rejection | >70dB |
| Audio Output Power | 3 Watts |
| Audio Distortion | <5% |
| Hum and Noise | >-40dB / >-45dB |
| Audio Response | 300Hz to 3KHz -6dB/Octave |
| Conducted Spurious Emission (ETSI) | <2nW up to 1GHz, <20nW from 1GHz to 2GHz |
| Environmental | |
| Ex Protection | Intrinsically Safe Certified to UL913 by SGS: ANSI/UL913 5th Ed Class I, II, III, Division 1, Groups C-G, T3 Class I, Division 2, Groups A-D |
| Operating Temperature | -20°C to +40°C |
| Storage Temperature | -40°C to +85°C |
| Water Ingress | IP68 2 meters, 4 hours submersible |
| Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test | Compliant MIL-STD810 C/D/E/F |
» Li-ion battery pack
» Drop in charger
» Spring loaded belt clip
» High efficiency antenna
» Quick start user guide
Bone conductive skull microphone

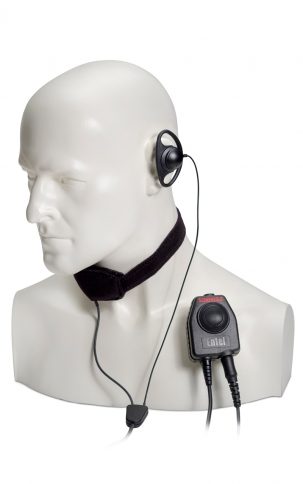

Bone conductive throat microphone
2200mAh rechargeable Lithium-Ion battery pack
Pocket size lapel microphone
Pocket size lapel microphone
Double ear-cup ear defender with large PTT & comfort headband

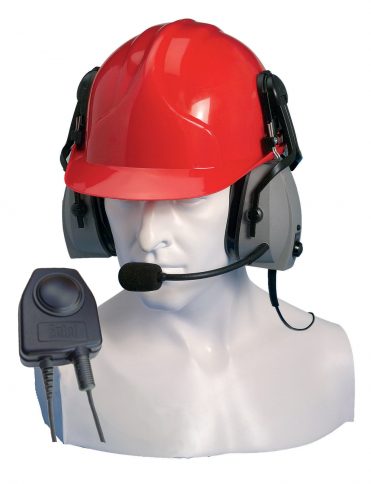

Double ear-cup defender with large PTT (hard hat use only)

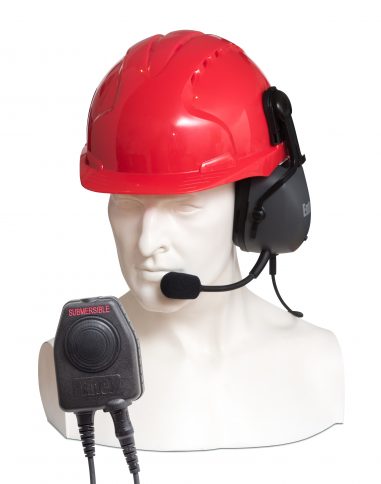

Single earpiece ear defender with large PTT (hard hat use only)
Heavy duty leather case with strap for non LCD models
Six pod intelligent rapid charger, 110-240v, state 2-pin or 3-pin plug

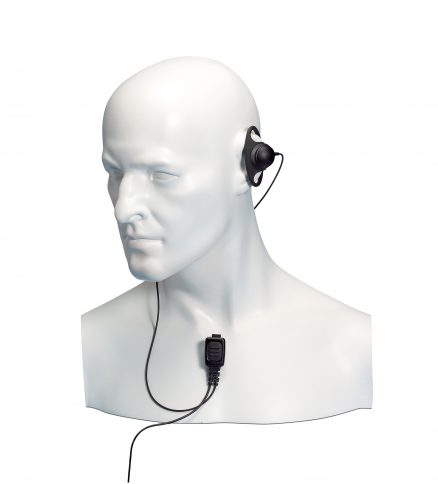

�D� shaped earpiece with tie clip microphone / PTT

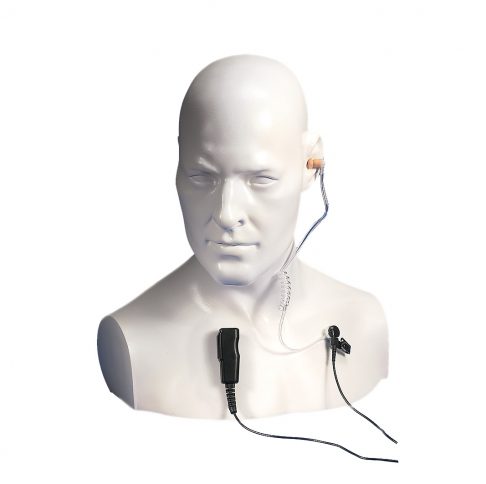

Acoustic tube earpiece with tie clip microphone / PTT
�D� shaped covert style earpiece

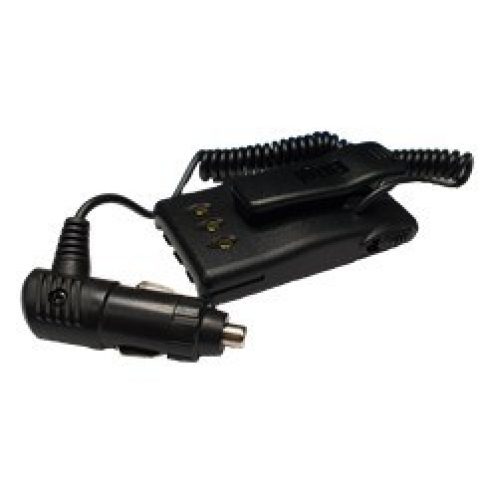

Dummy battery with regulator for 12v operation
Spare spring loaded belt clip
DX USB Programming lead

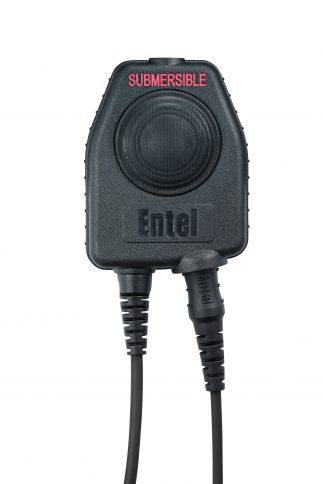

Spare waterproof PTT for CHP accessories
Spare waterproof PTT for CXR accessories
Single pod rapid charger, 110-240V, state 2-pin or 3-pin plug
Single pod trickle charger, specify 2-pin or 3-pin plug

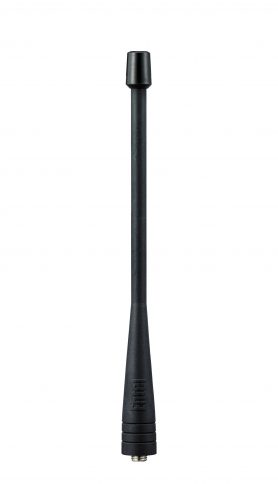

VHF 156MHz antenna
