Designed for tough marine environments, the HT644 has firmly established itself as a market-leading commercial-grade VHF. Its rugged, ergonomic design fits comfortably in your hand, and the extremely loud audio means calls are heard by the crew every time. For additional reassurance, the HT644 has a IP68 submersible rating of 2 metres for 4 hours to cope with the harshness of life at sea.
The HT644 has an extensive range of audio accessories including remote speaker microphones and ear defender headsets. Please see our accessories section for a complete listing.
Environmental protection to IP68 (2 Meters for 4 hours)
The practical HT644 Series 2.0 portable enjoys an IP68 (2 Meters for 4 hours) rated construction, which means that they are dust protected and fully Submersible.
MILSTD 810C/D/E/F/G
Meeting MIL-STD 810C/D/E/F/G and providing commercial grade construction for tough, enduring performance. Entel's HT644 Series 2.0 portable conforms to stringent standards, enabling it to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture, ensuring many years of trouble free use.
2200mAh Li-ion battery
The HT644 Series 2.0 portable is supplied with the latest intelligent Lithium-ion battery technology as standard. One key advantage of Lithium-ion battery technology is the way it eliminates ‘memory effect’ meaning there is no need to fully discharge your battery before recharging. Therefore you are assured a full charge each and every time you take your Entel battery from its charger.
Robust accessory socket
The socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse. Furthermore, the securing bolt incorporates a shearing point to protect the connector.
Channels
The HT644 portable provides all INT, USA & CAN Marine channels.
Keylock
To avoid accidental operation your radios keys & controls can be locked by the user or, if set, automatically by the radio.
VOX hands free (with audio accessory)
When using an Entel VOX enabled audio accessory, your HT644 portable can operate totally hands free. All you need to do is talk and the HT644 portable will automatically transmit for you.
Scan
The HT644 Series portable has the facility to scan for an active channel. When the channel is found, the radio will automatically select the channel for you.
| Specification | Details |
|---|---|
| Frequency Range | 156 - 163.275MHz |
| Channels | All INT, USA & CAN Marine Channels |
| Channel Spacing | 25 kHz |
| Communication Method | Simplex / semi duplex |
| Antenna Impedance | 50 ohm |
| Antenna | Whip / stubby |
| Battery Type | 2200 mAh Lithium-ion battery pack |
| Operating Voltage | 7.6V |
| Current Drain (nominal) | 40mA |
| Duty Cycle (5/5/90) | 14.5 hours |
| Microphone | Internal condenser microphone |
| Operating Temperature | -20° to +55°C |
| Construction | Compliant MIL-STD 810C/D/E/F/G |
| IP Rating | IP68 (2 meters depth for 4 hours) |
| Size (mm) | 59.5(W) x 130(H) x 37(D) |
| Weight | 277g with battery and aerial |
| Transmitter | |
| Power Output | 5W High <1W Low |
| Frequency Stability | ± 1.5ppm |
| Modulation Limiting | ± 5.0KHz |
| FM Hum & Noise | >-40dB |
| Unwanted Emissions | <2nW up to 1GHz, <20nW from 1GHz to 2GHz |
| Adjacent Channel Power | 70dBc |
| Audio Response (FM) | 300Hz to 3KHz -6dB/Octave |
| Audio Distortion | < 5% |
| FM Modulation | 16K0F3E |
| Receiver | |
| Frequency Stability | ± 0.5ppm |
| Analogue Sensitivity | -120dBm (0.2uV) for 12dB Sinad |
| Intermodulation Response | >68dB |
| Adjacent Channel Selectivity | >70dB |
| Spurious Rejection | >70dB |
| Rated Audio Power | 0.5W |
| Audio Distortion | < 5% |
| Hum & Noise | >-40dB |
| Audio Response | 300Hz to 3KHz -6dB/Octave |
| Conducted Spurious Emissions | <2nW up to 1GHz, <20nW from 1GHz to 2GHz |
» Li-ion battery pack
» Drop in charger
» Spring loaded belt clip
» High efficiency antenna
» Quick start user guide

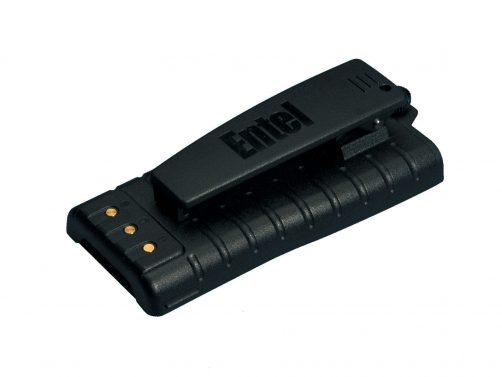

2200mAh rechargeable Lithium-Ion battery pack
Single pod rapid charger, 110-240v, specify 2-pin or 3-pin plug

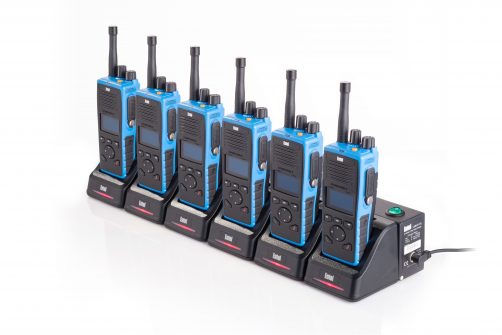

Six pod intelligent rapid charger, 110-240V. Specify 2-pin or 3-pin plug
Dummy battery with regulator and cigar plug for 12V operation

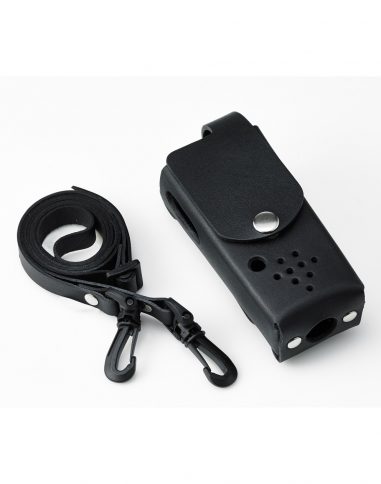

Soft leather case with carry strap for any radio

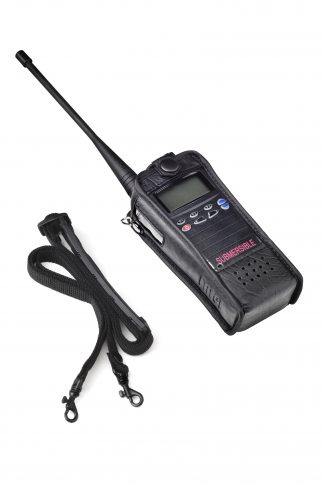

Heavy duty leather case and strap with belt loop for display radios

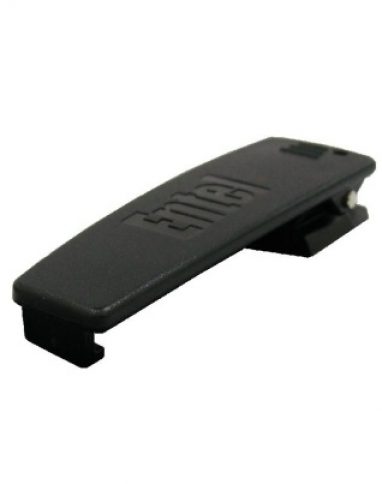

Spare spring-loaded belt clip

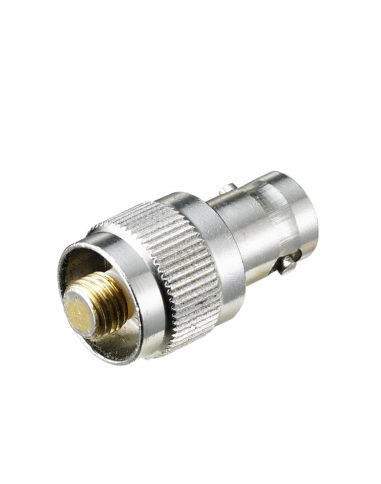

BNC Antenna adapter
Service manual (Only available to Authorised Dealers)

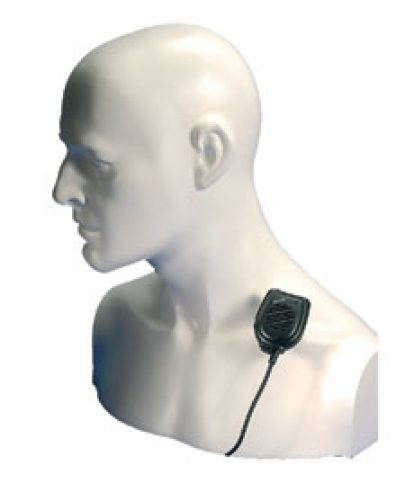

Pocket size lapel microphone
Submersible, very rugged heavy-duty lapel microphone

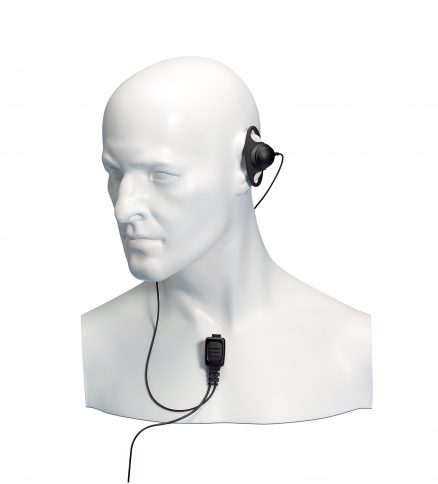

�D�-shaped earpiece with tie clip microphone / PTT

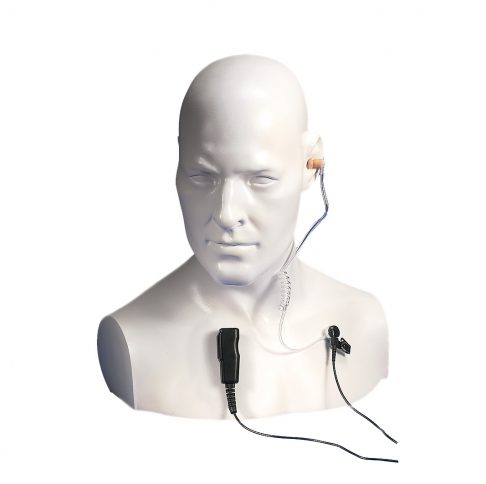

Acoustic tube earpiece with tie clip microphone / PTT
Double ear-cup defender with large PTT and comfort headband

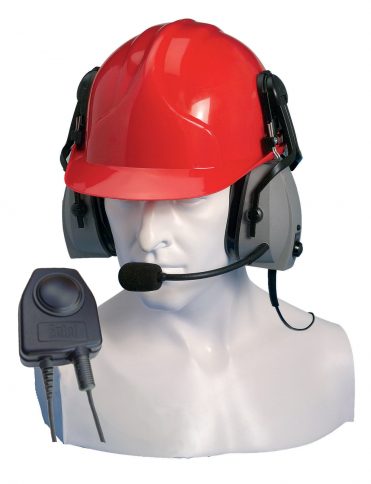

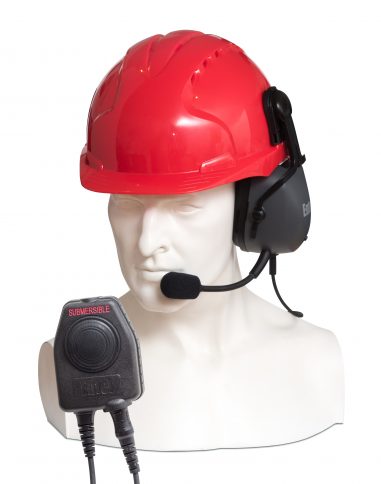

Double ear-cup defender with large PTT (hardhat use only)
Single earpiece ear defender with large PTT (hardhat use only)
D shaped covert style earpiece for the HT series hand portable radio
VHF 156MHz antenna
