Entel built the industrial-grade DTEx DMR Digital Series to exacting standards. This ATEX-certified portable delivers remarkably loud and clear audio, and ultra-tactile buttons and high torque controls allow the DTEx to be operated even with gloved hands.
The DTEx Series sets the benchmark for next-generation onboard radios with a market-leading IP68 submersible rating (2 meters 4 hours). You can depend on the DTEx to withstand daily use in extreme and hostile environments at sea.
To ensure your workforce receives consistently reliable and intelligible communications, we have developed an extensive range of certified and approved audio accessories for the DTEx Series, including remote speaker microphones, bone conductive skull mics and ear defender headsets. Please see our accessories section for a complete listing.
» Analogue & DMR Modes
» 99 Channels, 1 Zone
» IP68 Submersible (2m, 4 hours)
» Compliant to MILSTD construction 810C/D/E/F
» Easy to read, high contract white on black OLED display
» Exceptionally loud & best clarity audio - in class
» Salt Water anti-corrosion chassis coating
» Programmable buttons
» Gold plated accessory connector
» Locking accessory connector
» Accessory audio tailoring optimises audio for each accessory
» Memory scan
» Programmable switch on logo
» Drag and drop programmer, can be done onboard
Channels - The DT985M Marine can be programmed with both analogue and digital channels, this is clearly indicated on the display together with the frequency. If a semi duplex channel is programmed the word “Repeater” will be displayed instead of the frequency.
Benefits of digital - Digital mode which gives significantly better audio, extended range and longer battery life in comparison to analogue radios.
Environmental protection to IP68 (2 Meters for 4 hours) - The DT985M offers the highest submersibility rating of any manufacturer. This protects against corrosion, withstanding total immersion in water to a depth of 2 meters for 4 hours to protect against the likely hazards encountered in extremely wet environments.
Robust accessory socket – DT985M accessory socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse. The rugged, multi-pin interface and Micro-USB socket are both submersible and gold-plated to minimize any risk of damage and protect against corrosion. To ensure the integrity of IS protection levels any accessory connected to the handset automatically undergoes a validation process to safeguard against non-compliant accessories being used. All DT885FF accessories incorporate a robust locking connector to further safeguard the safety of the user.
High contrast white on black OLED display – the DT985M model benefits from a high contrast white on black OLED display that delivers superior readability in varying light conditions adding to the DT985M’s intuitive user interface.
Li-ion battery technology & improved talk time – DT985M radios are supplied with the latest intelligent Lithium-ion battery technology as standard. One key advantage of Lithium-ion battery technology is the way it eliminates ‘memory effect’, meaning that there is no need to fully discharge your battery before recharging. As a result of this, you are assured of a full charge each and every time you take your Entel battery from its charger.
Superior Audio - DT985M portables deliver loud & crisp audio no matter what environment you are in. All of the DT985M's range of accessories incorporate a robust locking plug and high-grade cable and benefit from Entel’s proprietary “Smart Speech Tailoring” technology. This automatically detects the type of accessory connected and optimizes the audio accordingly to deliver the very best performance.
Simple onboard reprogramming app - With our free, unique and simple to use PC app, you can easily re-program a DT985M radio whilst still onboard. The user friendly app makes it easy to drag and drop a new programming file from an email to your DT985M radio(s).
This is a simple and seamless process that can be carried out by non-technical personnel.
Keylock - To avoid accidental operation, your radio's keys & controls can be locked.
Programmable channel monitor button - If you have channel protection enabled on your DT985M portable, all signals other than your own networks will be filtered out. This can be temporarily disabled allowing you to monitor all signals on your channel.
Memory scan – enables the radios user to create / change their own channel scan list.
Audio Accessories & BA Support - Entel also offer an extensive range of accessories including Draegor BA, most popular for Fire Fighters is the CXR bone conductive throat and skull microphones which eliminate ambient noise, further enhanced by DT985M's speech tailoring technology delivering intelligible communications first time, every time
ATEX IIC T4 Approved - The DT985M ATEX certified portables meet IIC T4 - the most stringent ATEX ratings as per EU directive 2014/34/EU.
| Specification | Details |
|---|---|
| Frequency Range | UHF 450–470MHz |
| Channels | Marine UHF |
| Channel Spacing Analogue / Digital | 6.25KHz, 12.5KHz & 25KHz |
| Battery | CNB950EV2 1800mAh Lithium-ion |
| Overall Dimensions (HxWxD) | 138mm x 60mm x 38mm |
| Frequency Stability | ±0.5ppm |
| Operating Voltage | 7.4v |
| Programmable Buttons | 3 |
| Battery Endurance (5/5/90 - Analog Mode) | 16 hours |
| Battery Endurance (5/5/90 - DMR Mode) | 18 hours |
| Battery care information | Visit entel.co.uk/battery_care |
| Transmitter | |
| Output Power | 1 Watt |
| Modulation Limiting | ±2.5KHz / ±5.0KHz |
| FM Hum and Noise | >-40dB / >-45dB |
| Unwanted Emissions | >0.25uW |
| Adjacent Channel Power | >60 dBc / >70dBc |
| Audio Response (FM) | 300Hz to 3KHz -6dB /Octave |
| Audio Distortion | <5% |
| FM Modulation | 16K0F3E / 8K0F3E |
| 4FSK Digital Modulation | 7K60FXE / 7K60FXD |
| Receiver | |
| Digital Sensitivity | -116dBm (0.2uV) for 5% BER |
| Analogue Sensitivity | -116dBm (0.2uV) for 12dB SINAD |
| Intermodulation Response | >68dB |
| Adjacent Channel Selectivity | >60dB / >70dB |
| Spurious Rejection | >70dB |
| Rated Audio Power | 1 Watt |
| Audio Distortion | <5% |
| Hum and Noise | >-40dB / >-45dB |
| Audio Response | 300Hz to 3KHz -6dB /Octave |
| Conducted Spurious Emissions | <2nW from 30MHz to 2GHz |
| Environmental | |
| Ex Protection | ATEX II 2G Ex ib IIC T4 Gb |
| Operating Temperature | -20°C to +40°C |
| Storage Temperature | -40°C to +85°C |
| Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test | Compliant MIL-STD-810 C/D/E/F |
| Dust & Liquid Ingress | IP68 (2m 4h Submersible) |
» Li-ion battery pack
» Drop in charger
» Spring loaded belt clip
» High efficiency antenna
» Quick start user guide
Bone conductive skull microphone
Bone conductive throat microphone

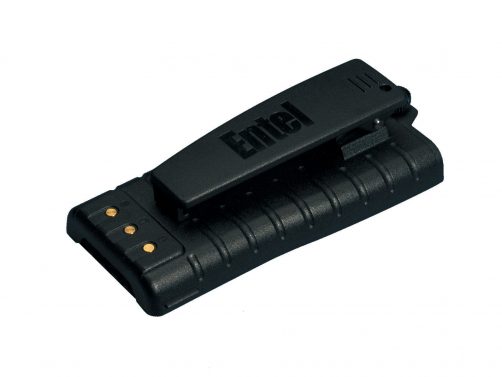

1800mAh rechargeable Lithium-Ion battery pack

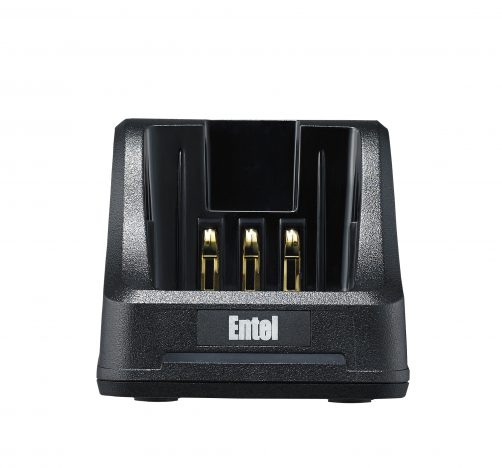

Single pod rapid charger, 110-240v, specify 2-pin or 3-pin plug
Single pod trickle charger, specify 2-pin or 3-pin plug
Six pod intelligent rapid charger, 110-240V. Specify 2-pin or 3-pin plug

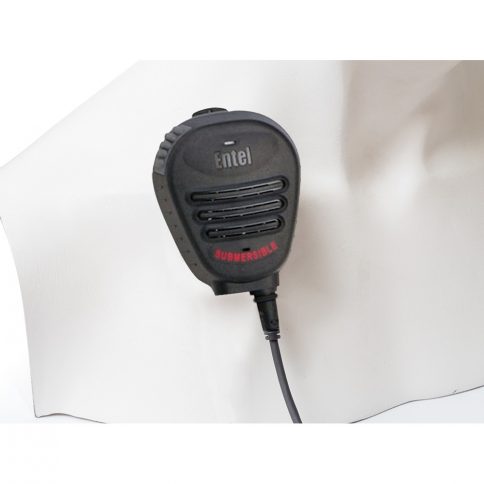

Rugged submersible remote speaker microphone
SAVOX C-C550 Remote Speaker Microphone, approved for use with DT800 and DT900 Series ATEX radios
Double ear-cup ear defender headset with headband, c/w PTT-E/DT9

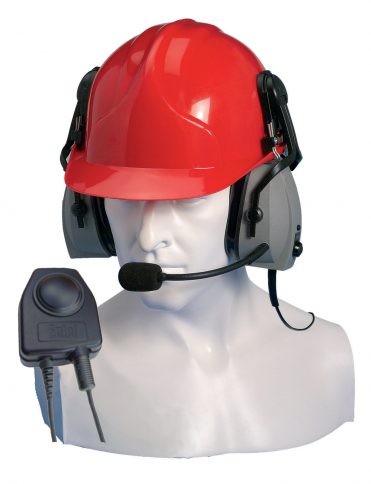

Double ear-cup ear defender headset with hardhat fixings, c/w PTT-E/DT9
Single ear-cup ear defender headset with hardhat fixings, c/w PTT-E/DT9

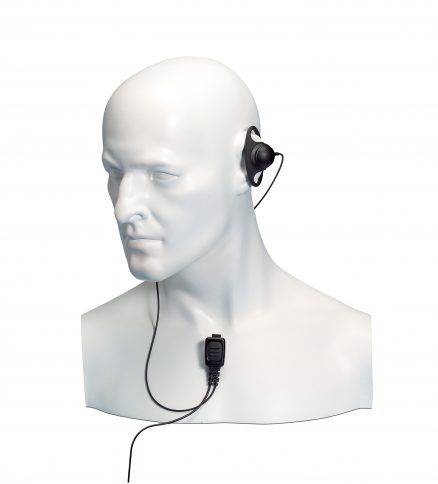

Earpiece microphone & PTT

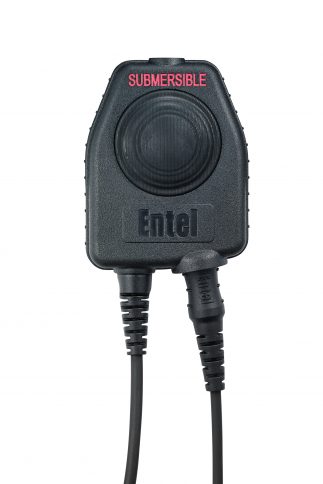

Spare heavy duty waterproof push-to-talk for CHP accessories
Spare heavy duty waterproof push-to-talk for CXR accessories.
Heavy duty leather case and strap with belt loop for the DTEx series hand portable radio
Listen only earpiece - Not currently available
UHF 400 - 512MHz � whip antenna
UHF 462MHz antenna
UHF 460MHz stubby antenna
