Built to meet the needs of tough marine environments, the DX400 Series offers outstanding performance. This commercial-grade portable delivers unmatched audio volume and clarity. The intuitive controls, designed for gloved hands, complement the high-contrast OLED display, which is easy to read in low-light conditions.
These compact, ultra-durable portables provide a far more natural sounding, 3 watts of digital audio, clearer and louder than radios twice their size. For further peace of mind, the DX400 Series has a market-leading IP68 submersible rating of 2 metres for 4 hours to cope with the harsh conditions of life at sea.
We have an extensive range of certified and approved audio accessories for the DX400 Series, including remote speaker microphones, bone conductive skull mics and ear defender headsets. Please see our accessories section for a complete listing.
» Analogue & DMR Modes
» 99 Channels, 1 Zone
» IP68 Submersible (2m, 4 hours)
» Compliant to MILSTD construction 810C/D/E/F
» Salt Water anti-corrosion chassis coating
» 3 watts loudest & best clarity audio - in class
» Programmable buttons
» Gold plated accessory connector
» Locking accessory connector
» Accessory audio tailoring optimises audio for each accessory
» High contrast white on black OLED
» Memory scan
» Programmable switch on logo
» Drag and drop programmer, can be done onboard
Channels / Zones - DX485M portables provide 99 programmable channels.
Environmental protection - IP68 (2 Meters for 4 hours) Entel's radios are approved to IP68 (2 Meters for 4 hours) rated construction, which means that they are dust protected and fully Submersible (even with the accessory cover removed).
MILSTD 810C/D/E/F - Meeting MIL-STD 810C/D/E/F and providing commercial grade construction for tough, enduring performance. Entel's radios conform to stringent standards, enabling them to withstand the everyday rigours of shock, vibration and the corrosive effects of dust and moisture, ensuring many years of trouble free use.
Li-ion battery technology & improved talk time - Entel's radios are supplied with the latest, high-capacity, intelligent Lithium-ion battery technology as standard. One key advantage of Lithium-ion battery technology is the way it eliminates ‘memory effect’, meaning that there is no need to fully discharge your battery before recharging. As a result of this, you are assured of a full charge each and every time you take your Entel battery from its charger.
Outstanding Audio - Entel’s radios offer best-in-class performance, with an impressive 3 watts of natural-sounding digital audio, far exceeding the output of radios almost twice their size.
Emergency button - By pressing the emergency button the radio will instantly send an alarm call to other radio(s) as well as sounding a local alarm. On receiving display models the radios unique ID / Alias is also displayed.
Programmable buttons - To ensure your Entel radio meets your exact need its buttons can be programmed with the exact features you need.
Gold plated accessory connector - The radios multi-pin interface and Micro-USB socket are both submersible and gold-plated to minimise any risk of damage and protect against corrosion.
Locking accessory connector - All Entel accessories incorporate a robust locking connector and the radios accessory socket has been specifically designed so that when an accessory is secured to the portable, the connection can withstand any amount of punishment; from dropping to careless misuse.
Accessory audio tailoring - Entel's radios identify the attached accessory and automatically adjust its settings ensuring the most natural and readable audio possible is delivered even with bone conductive accessories and breathing apparatus com kits.
High contrast white on black OLED display - Entel's radios benefit from a high contrast white on black OLED display that delivers superior readability in varying light conditions adding to the radios intuitive user interface.
Programmable switch on logo - As a personal touch it is possible to upload your customers own logo to Entel display radios so it is displayed when the radio is booting up.
Memory scan – enables the radios user to create / change their own channel scan list.
End user programmer - Entel adds and improves features on its DX400 radios by way of free software updates. Using Entel’s innovative End User Programmer app Entel DX400 radios can be easily upgraded without the Dealer having to visit site or courier the radios back and forth saving significant time and expense.
| Specification | Details |
|---|---|
| Frequency Range | UHF 450–470MHz |
| Channels | Marine UHF |
| Channel Spacing Analogue / Digital | 6.25KHz, 12.5KHz & 25KHz |
| Battery | CNB950EV2 1800mAh Lithium-ion |
| Overall Dimensions (HxWxD) | 138mm x 60mm x 38mm |
| Frequency Stability | ±0.5ppm |
| Operating Voltage | 7.4v |
| Programmable Buttons | 3 |
| Battery Endurance (5/5/90 - Analog Mode) | 16 hours |
| Battery Endurance (5/5/90 - DMR Mode) | 18 hours |
| Battery care information | Visit entel.co.uk/battery_care |
| Transmitter | |
| Output Power | 1 Watt |
| Modulation Limiting | ±2.5KHz / ±5.0KHz |
| FM Hum and Noise | >-40dB / >-45dB |
| Unwanted Emissions | >0.25uW |
| Adjacent Channel Power | >60 dBc / >70dBc |
| Audio Response (FM) | 300Hz to 3KHz -6dB /Octave |
| Audio Distortion | <5% |
| FM Modulation | 16K0F3E / 8K0F3E |
| 4FSK Digital Modulation | 7K60FXE / 7K60FXD |
| Receiver | |
| Digital Sensitivity | -116dBm (0.2uV) for 5% BER |
| Analogue Sensitivity | -116dBm (0.2uV) for 12dB SINAD |
| Intermodulation Response | >68dB |
| Adjacent Channel Selectivity | >60dB / >70dB |
| Spurious Rejection | >70dB |
| Rated Audio Power | 1 Watt |
| Audio Distortion | <5% |
| Hum and Noise | >-40dB / >-45dB |
| Audio Response | 300Hz to 3KHz -6dB /Octave |
| Conducted Spurious Emissions | <2nW from 30MHz to 2GHz |
| Environmental | |
| Ex Protection | ATEX II 2G Ex ib IIC T4 Gb |
| Operating Temperature | -20°C to +40°C |
| Storage Temperature | -40°C to +85°C |
| Thermal Shock, Humidity, Shock & Vibration, Packing Test, Drop Test | Compliant MIL-STD-810 C/D/E/F |
| Dust & Liquid Ingress | IP68 (2m 4h Submersible) |
» Li-ion battery pack
» Drop in charger
» Spring loaded belt clip
» High efficiency antenna
» Quick start user guide
Bone conductive skull microphone
Bone conductive throat microphone

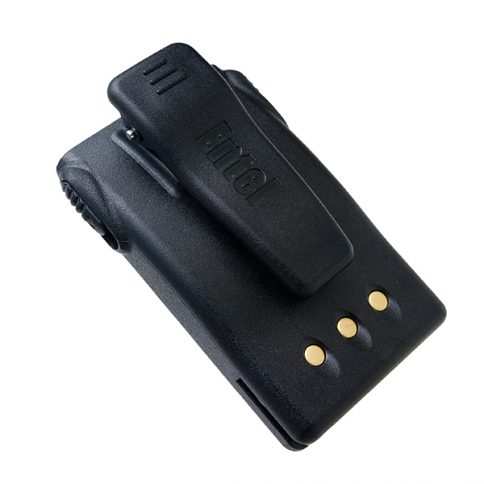

2200mAh rechargeable Lithium-Ion battery pack
Pocket size lapel microphone
Pocket size lapel microphone
Double ear-cup ear defender with large PTT & comfort headband
Double ear-cup defender with large PTT (hard hat use only)
Single earpiece ear defender with large PTT (hard hat use only)
Heavy duty leather case with strap for LCD models
Six pod intelligent rapid charger, 110-240v, state 2-pin or 3-pin plug

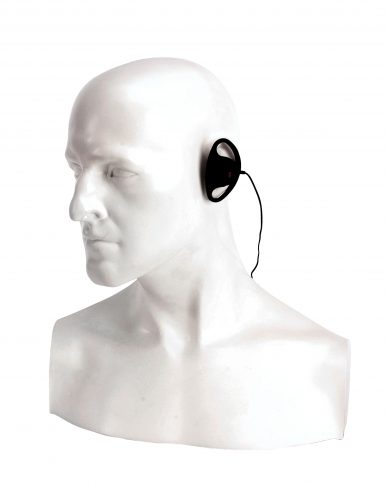

�D� shaped earpiece with tie clip microphone / PTT
Acoustic tube earpiece with tie clip microphone / PTT
�D� shaped covert style earpiece

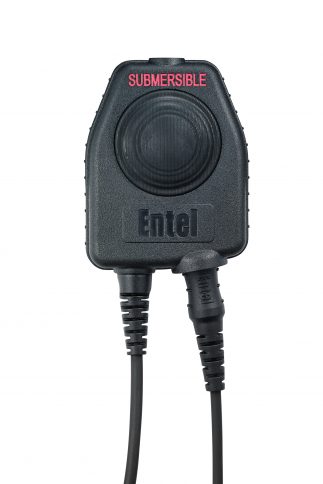

Spare waterproof PTT for CXR accessories
Spare waterproof PTT for CHP accessories
Dummy battery with regulator for 12v operation
Spare spring loaded belt clip
BNC antenna adaptor
DX USB Programming lead
Single pod rapid charger, 110-240V, state 2-pin or 3-pin plug
Single pod trickle charger, specify 2-pin or 3-pin plug

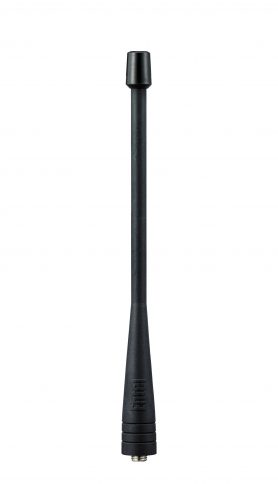

UHF 400 - 512MHz � whip antenna
UHF 462MHz antenna
